APPLICATION AREA

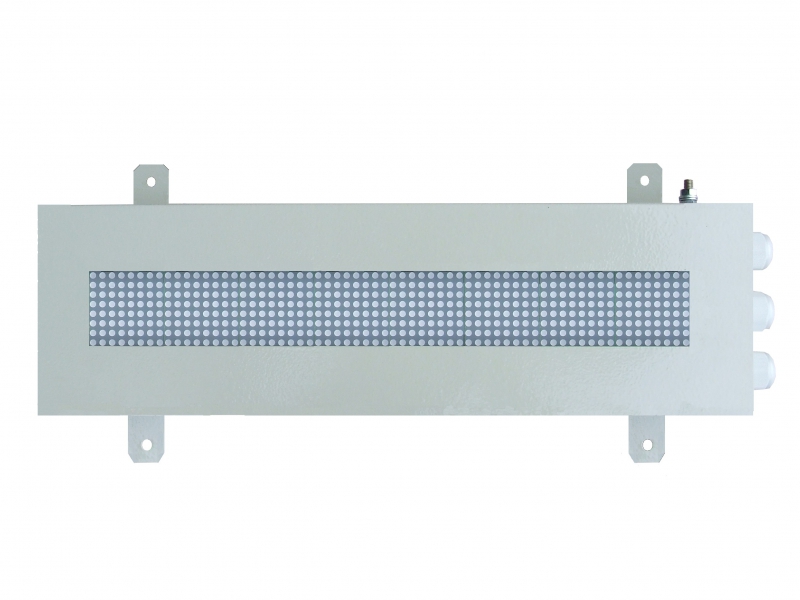

TSN-E dot matrix displays are meant to present warning or information messages for underground transportation systems to enhance safety of personnel and improve organization of transport operations. The content of displayed messages stored in the device memory is agreed upon with the user at order submission according to specific needs.
APPLICATION CONDITIONS
TSN light message boards are suitable for working areas of underground operations without the hazard of methane explosion and the ones with the ‘a’ degree of methane explosion hazard as well as with the ‘A’ class of coal dust explosion hazard at ambient temperatures from 0ºC to 40ºC, relative humidity up to 95% and the ‘C’ degree of corrosion aggressiveness to PN-71/H-04651).
CHARACTERISTICS
Messages to be displayed can be selected locally by means of switches provided on the device enclosure. In case of remote control the messages are popped out from the memory upon commands received via input contacts. Displaying of messages is controlled with use of voltage available in internal circuits of the device. The dot matrix display is furnished with a relay output to control any other slave devices. The display can be mounted in whichever position and messages are always displayed correctly since cable inlets are provided at both at left-hand and right-hand side of the device. Displayed messages can be scrolled at two selectable speeds.
TECHNICAL SPECIFICATION
| TYPE | TSN-E |
|
Rated voltage
|
24-260 VAC
30-360 VDC
|
| Maximum consumption of current |
200mA
|
|
Rated voltage
|
6 A / 250 V AC
6 A / 24 V DC
|
|
Number of messages
to be displayed |
16
|
|
Range of operation
temperatures |
0°C do +40°C
|
| Enclosure index of protection |
IP 54 |
|
Colour of displayed
messages |
Red
|
| Overall dimensions (W x H x D) |
610 x 250 x 139 mm |
|
|
480 x 60 mm |
| Weight | 7kg |
| Maximum cross-section of connecting conductors |
0,5 – 4 mm2 |
