APPLICATION AREA

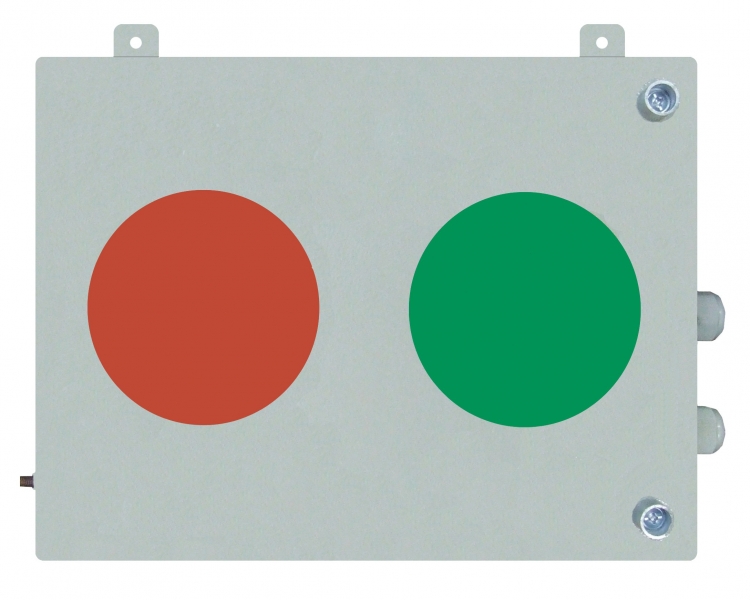

Two-aspect railroad signals of Sn1-2 types are designed for application in underground railway transportation systems to improve safety of personnel with correct and safe handling of railway traffic. Light signals are meant to indicate changes in traffic situations and broadcast prohibiting, enforcing or warning signals for train operators and other employees involved in railway traffic about current status of traffic control equipment (a railroad switch). The Sn1-2 device is a twoaspect appliance desiged to provide only two signals, i.e. STOP (STÓJ) or GO (JAZDA).
APPLICATION CONDITIONS
Two-aspect railroad signals of Sn1-2 types are suitable for working areas of underground operations without the hazard of methane explosion and the ones with the ‘a’ degree of methane explosion hazard as well as with the ‘A’ class of coal dust explosion hazard.
CONFORMITY WITH STANDARDS
Two-aspect railroad signals of Sn1-2 types are manufactured in line with rules of good engineering practice in the field of occupational safety as well as current state-of-art in technical expertise with consideration to applicable technical standards and the 2014/35/UE Low-Voltage Directive.
TECHNICAL SPECIFICATION
TYPE OF EQUIPMENT
|
Sn1-2
|
Sn 1-2/L
|
Sn1-2/LS
|
Sn1-2/LX |
Rated power voltage
|
250V DC
|
24-230V AC
24-280V DC
|
24-230V AC
24-280V DC
|
24-230V AC
24-280V DC
|
Type and power of light
sources |
LIGHT BULBS
40W |
LEDs 5W |
LEDs 5W + 1.5W |
LEDs 5W + 1.5W |
Feedback signal to conform
operability of the device |
- | - | x | x |
Range of operating
temperatures |
0ºC to +40ºC |
|||
Enclosure index of protection
|
IP 54 |
|||
Overall dimensions (W x H x D)
|
300 x 400 x 150 mm | |||
Weight
|
8 kg |
